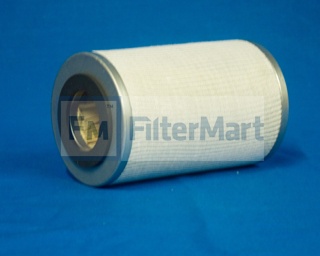

Filtermart™ LIQUID COALESCER ELEMENT

Add To Cart

FMC #16-0114

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Coalescer Filters/Liquid

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	2.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	300 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.13 IN (104.90 MM)
  (B) Outer Diameter, Bottom:	4.13 IN (104.90 MM)
  (C) Inner Diameter, Top:	1.88 IN (47.75 MM)
  (D) Inner Diameter, Bottom:	1.88 IN (47.75 MM)
  (E) Length:	6.63 IN (47.75 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	NONE
  Type of Media:	PAPER/GLASS
  Filter Area:	482 SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	YES - SOCK
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  6
