All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.
*6 per carton

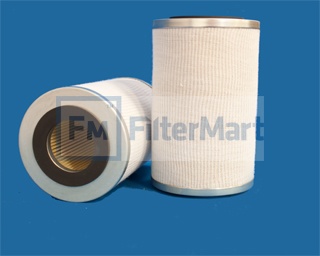

Industrial Filters/Separator Filters/Liquid
| Micron Rating: | 2.00 NOMINAL |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | 75 PSID |
| Maximum Temperature: | 225 F |
| Direction of Flow: | INSIDE->OUT |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 4.13 IN (104.90 MM) |
| (B) Outer Diameter, Bottom: | 4.13 IN (104.90 MM) |
| (C) Inner Diameter, Top: | 1.88 IN (47.75 MM) |
| (D) Inner Diameter, Bottom: | 1.88 IN (47.75 MM) |
| (E) Length: | 6.63 IN (47.75 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | VITON |
| Type of Adhesive: | EPOXY |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | NONE |
| Type of Media: | PAPER/GLASS |
| Filter Area: | 482 SQ.IN. |
| Plating: | ZINC PLATED |
| Outer Jacket: | YES - SOCK |
| Configuration: | DOUBLE OPEN END |
| Number per Carton: | 6 |
| Carton Weight: | 8.00 LB (3.63 KG) |
