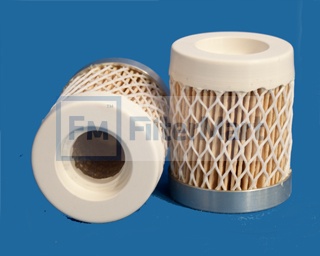

Filtermart™ COMPRESSED AIR ELEMENT

Add To Cart

FMC #18-0216

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Coalescer Filters/Air/Paper-Particulate

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	3.00
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:	180 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	15 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	1.65 IN (41.91 MM)
  (B) Outer Diameter, Bottom:	1.65 IN (41.91 MM)
  (C) Inner Diameter, Top:	1.00 IN (25.40 MM)
  (E) Length:	2.13 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	URETHANE
  Type of Adhesive:	N/A
  Type of Endcap:	STEEL / URETHANE
  Center Tube:	STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:	N/A
  Outer Jacket:	YES
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	1.00 LB (0.45 KG)
