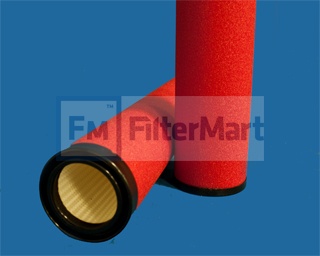

Filtermart™ COALESCING FILTER ELEMENT

Add To Cart

FMC #18-0334

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Coalescer Filters/Air/Paper-Particulate

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.30
  Beta Rating:
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	180 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	15 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.25 IN (82.55 MM)
  (B) Outer Diameter, Bottom:	3.25 IN (82.55 MM)
  (C) Inner Diameter, Top:	2.26 IN (57.40 MM)
  (E) Length:	26.22 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	N/A
  Type of Endcap:	POLYPROPYLENE
  Center Tube:	POLYPROPYLENE
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	N/A
  Outer Jacket:	YES
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	0.50 LB (0.23 KG)
