This product usually ships in 24-48 hours
All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.
*Special Pricing – (limited qty), additional discounts do not apply

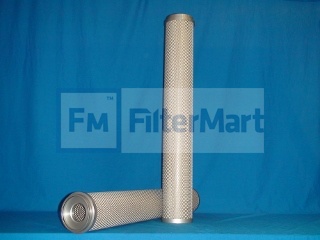

Industrial Filters/Coalescer Filters/Air/Paper-Particulate
Micron Rating: | 3.00 |
Beta Rating: | |
Collapse Pressure Rating: | |
Maximum Temperature: | 225 F |
Direction of Flow: | OUTSIDE->IN |
Recommended Changeout Differential Pressure: | 0 PSID |
(A) Outer Diameter, Top: | 4.80 IN (121.92 MM) |
(B) Outer Diameter, Bottom: | 4.80 IN (121.92 MM) |
(C) Inner Diameter, Top: | 3.88 IN (98.55 MM) |
(D) Inner Diameter, Bottom: | 2.12 IN (53.85 MM) |
(E) Length: | 31.31 IN (53.85 MM) |
(F) Thread: | NONE |
Handle: | NONE |
Seal Material: | BUNA-N |
Type of Adhesive: | EPOXY |
Type of Endcap: | ANODIZE ALUMINUM |
Center Tube: | GALVANIZED STEEL |
Type of Media: | PAPER |
Filter Area: | SQ.IN. |
Plating: | |
Outer Jacket: | YES |
Configuration: | SINGLE OPEN END |
Number per Carton: | 1 |
