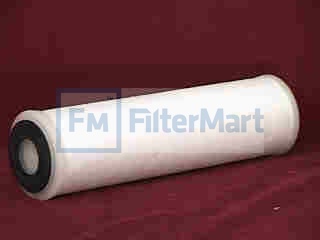

Filtermart™ AIR COALESCER ELEMENT

Add To Cart

FMC #19-0033

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Coalescer Filters/Air/Borosilicate Glass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.30 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	180 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	15 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.75 IN (69.85 MM)
  (B) Outer Diameter, Bottom:	2.75 IN (69.85 MM)
  (C) Inner Diameter, Top:	1.06 IN (26.92 MM)
  (D) Inner Diameter, Bottom:	1.06 IN (26.92 MM)
  (E) Length:	9.88 IN (26.92 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	POLYPROPYLENE
  Center Tube:	POLYPROPYLENE
  Type of Media:	BOROSILICATE
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	NONE - NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	6
  Carton Weight:	1.00 LB (0.45 KG)
