All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

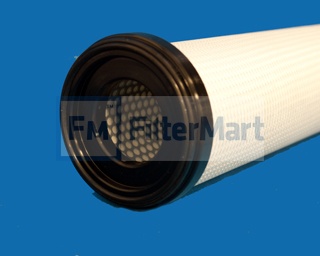

Industrial Filters/Coalescer Filters/Air/Borosilicate Glass
| Micron Rating: | 0.01 |
| Beta Rating: | 99.97% |
| Collapse Pressure Rating: | N/A |
| Maximum Temperature: | 175 F |
| Direction of Flow: | INSIDE->OUT |
| Recommended Changeout Differential Pressure: | 15 PSID |
| (A) Outer Diameter, Top: | 3.48 IN (88.39 MM) |
| (B) Outer Diameter, Bottom: | 3.48 IN (88.39 MM) |
| (C) Inner Diameter, Top: | 1.66 IN (42.16 MM) |
| (D) Inner Diameter, Bottom: | 0.63 IN (16.00 MM) |
| (E) Length: | 29.88 IN (16.00 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | BUNA-N |
| Type of Adhesive: | EPOXY |
| Type of Endcap: | ALUMINUM |
| Center Tube: | CARBON STEEL |
| Type of Media: | MICROGLASS |
| Filter Area: | N/A |
| Plating: | N/A |
| Outer Jacket: | NONE |
| Configuration: | SINGLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 4.00 LB (1.81 KG) |
