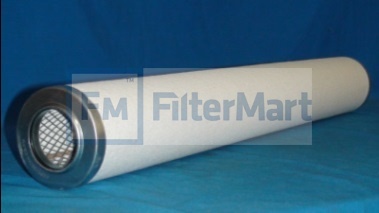

Filtermart™ COMPRESSED AIR ELEMENT

Add To Cart

FMC #19-1096

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Coalescer Filters/Air/Borosilicate Glass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.30 99.97%
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	180 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	15 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.73 IN (94.74 MM)
  (B) Outer Diameter, Bottom:	3.73 IN (94.74 MM)
  (C) Inner Diameter, Top:	2.20 IN (55.88 MM)
  (D) Inner Diameter, Bottom:	2.20 IN (55.88 MM)
  (E) Length:	29.63 IN (55.88 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA
  Type of Adhesive:	N/A
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  6
