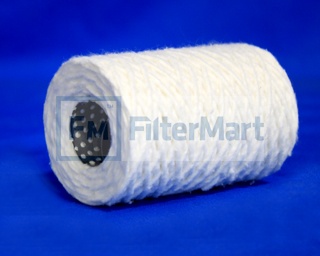

Filtermart™ PARTICULATE ELEMENT

Add To Cart

FMC #20-0034

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*60 per carton

Industrial Filters/Coalescer Filters/Air/Borosilicate-Particulate High Temperature

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	275 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.50 IN (63.50 MM)
  (B) Outer Diameter, Bottom:	2.50 IN (63.50 MM)
  (C) Inner Diameter, Top:	1.00 IN (25.40 MM)
  (D) Inner Diameter, Bottom:	1.00 IN (25.40 MM)
  (E) Length:	3.75 IN (25.40 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:	NONE
  Type of Endcap:	NONE
  Center Tube:	STEEL
  Type of Media:	B-COTTON
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	NONE - NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	60
  Carton Weight:	4.50 LB (2.04 KG)
