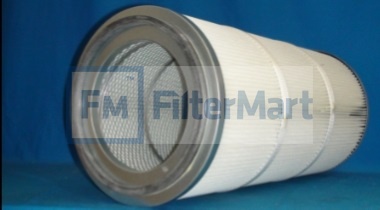

Filtermart™ DUST COLLECTOR ELEMENT

Add To Cart

FMC #21-0050

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*4 per carton

Industrial Filters/Air Filters/Dust Collector

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	2.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:	180 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	12.75 IN (323.85 MM)
  (B) Outer Diameter, Bottom:	12.75 IN (323.85 MM)
  (C) Inner Diameter, Top:	8.38 IN (212.85 MM)
  (E) Length:	26.00 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NEOPRENE
  Type of Adhesive:	URETHANE
  Type of Endcap:	GALVANIZED STEEL
  Center Tube:	GALVANIZED STEEL
  Type of Media:	SPUN BOND
  Filter Area:	85 SQFT
  Plating:	ELECTRO-GALVANIZED
  Outer Jacket:	NONE - NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	4
  Carton Weight:	15.00 LB (6.80 KG)
