All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

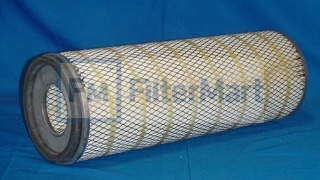

Industrial Filters/Air Filters/Dust Collector
| Micron Rating: | 2.00 ABSOLUTE |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | 75 PSID |
| Maximum Temperature: | 180 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 7.94 IN (201.68 MM) |
| (B) Outer Diameter, Bottom: | 7.94 IN (201.68 MM) |
| (C) Inner Diameter, Top: | 3.61 IN (91.69 MM) |
| (D) Inner Diameter, Bottom: | 0.38 IN (9.65 MM) |
| (E) Length: | 22.00 IN (9.65 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | ISOPRENE |
| Type of Adhesive: | PLASTISOL |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | PLATED STEEL |
| Type of Media: | 80/20 BLEND |
| Filter Area: | 74 SQ.FT. |
| Plating: | ELECTRO-GALVANIZED |
| Outer Jacket: | YES - METAL |
| Configuration: | SINGLE OPEN END/BH |
| Number per Carton: | 1 |
| Carton Weight: | 8.00 LB (3.63 KG) |
