All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

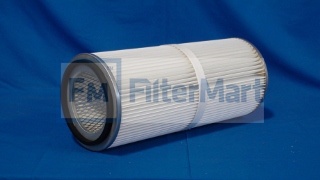

Industrial Filters/Air Filters/Dust Collector
| Micron Rating: | 10.00 NOMINAL |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | 75 PSID |
| Maximum Temperature: | 150 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 8.82 IN (224.03 MM) |
| (B) Outer Diameter, Bottom: | 8.82 IN (224.03 MM) |
| (C) Inner Diameter, Top: | 5.50 IN (139.70 MM) |
| (D) Inner Diameter, Bottom: | 0.62 IN (15.75 MM) |
| (E) Length: | 20.00 IN (15.75 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | BUNA-N |
| Type of Adhesive: | PLASTISOL |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | PLATED STEEL |
| Type of Media: | SPUNBOND |
| Filter Area: | SQ.FT. |
| Plating: | ELECTRO-GALVANIZED |
| Outer Jacket: | NONE - NONE |
| Configuration: | SINGLE OPEN END/BH |
| Number per Carton: | 1 |
