All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

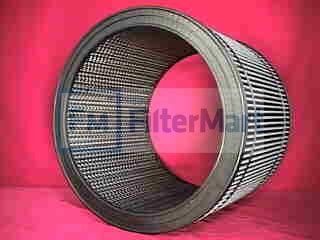

Industrial Filters/Air Filters/Intake Air
| Micron Rating: | 15.00 NOMINAL |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | NOT RATED |
| Maximum Temperature: | 300 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 19.63 IN (498.60 MM) |
| (B) Outer Diameter, Bottom: | 19.63 IN (498.60 MM) |
| (C) Inner Diameter, Top: | 15.00 IN (381.00 MM) |
| (D) Inner Diameter, Bottom: | 15.00 IN (381.00 MM) |
| (E) Length: | 14.50 IN (381.00 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | MOLDED |
| Type of Adhesive: | PLASTISOL |
| Type of Endcap: | PLASTISOL |
| Center Tube: | PLATED STEEL |
| Type of Media: | POLYESTER |
| Filter Area: | 37.9 SQ.FT. |
| Plating: | ELECTROTIN PLATED |
| Outer Jacket: | NONE - NONE |
| Configuration: | DOUBLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 3.00 LB (1.36 KG) |
