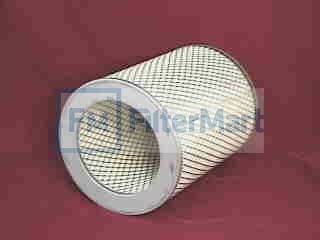

Filtermart™ INTAKE AIR FILTER ELEMENT

Add To Cart

FMC #22-0410

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Air Filters/Intake Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	NOT RATED
  Maximum Temperature:	225 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	8.25 IN (209.55 MM)
  (B) Outer Diameter, Bottom:	8.25 IN (209.55 MM)
  (C) Inner Diameter, Top:	0.50 IN (12.70 MM)
  (D) Inner Diameter, Bottom:	5.75 IN (146.05 MM)
  (E) Length:	11.00 IN (146.05 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	YES - METAL
  Configuration:	SINGLE OPEN END/BH

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	4.30 LB (1.95 KG)
