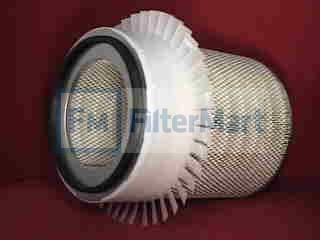

Filtermart™ INTAKE AIR FILTER ELEMENT W/FIN

Add To Cart

FMC #22-0515

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Air Filters/Intake Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	250 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	15.50 IN (393.70 MM)
  (B) Outer Diameter, Bottom:	12.09 IN (307.09 MM)
  (C) Inner Diameter, Top:	0.53 IN (13.46 MM)
  (D) Inner Diameter, Bottom:	7.72 IN (196.09 MM)
  (E) Length:	14.50 IN (196.09 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	10670.85 SQ.IN
  Plating:	N/A
  Outer Jacket:	YES - METAL
  Configuration:	SINGLE W/ BOLT HOLE

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	10.00 LB (4.54 KG)
