All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

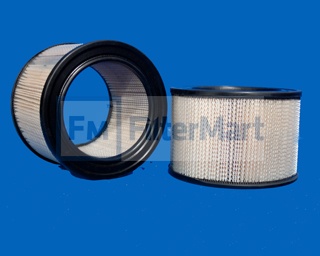

Industrial Filters/Air Filters/Intake Air
| Micron Rating: | 15.00 NOMINAL |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | N/A |
| Maximum Temperature: | 250 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 7.00 IN (177.80 MM) |
| (B) Outer Diameter, Bottom: | 7.00 IN (177.80 MM) |
| (C) Inner Diameter, Top: | 4.88 IN (123.95 MM) |
| (D) Inner Diameter, Bottom: | 4.88 IN (123.95 MM) |
| (E) Length: | 4.63 IN (123.95 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | MOLDED |
| Type of Adhesive: | PLASTISOL |
| Type of Endcap: | MOLDED |
| Center Tube: | GALVANIZED STEEL |
| Type of Media: | PAPER |
| Filter Area: | N/A |
| Plating: | NONE |
| Outer Jacket: | YES - METAL |
| Configuration: | DOUBLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 1.20 LB (0.54 KG) |
