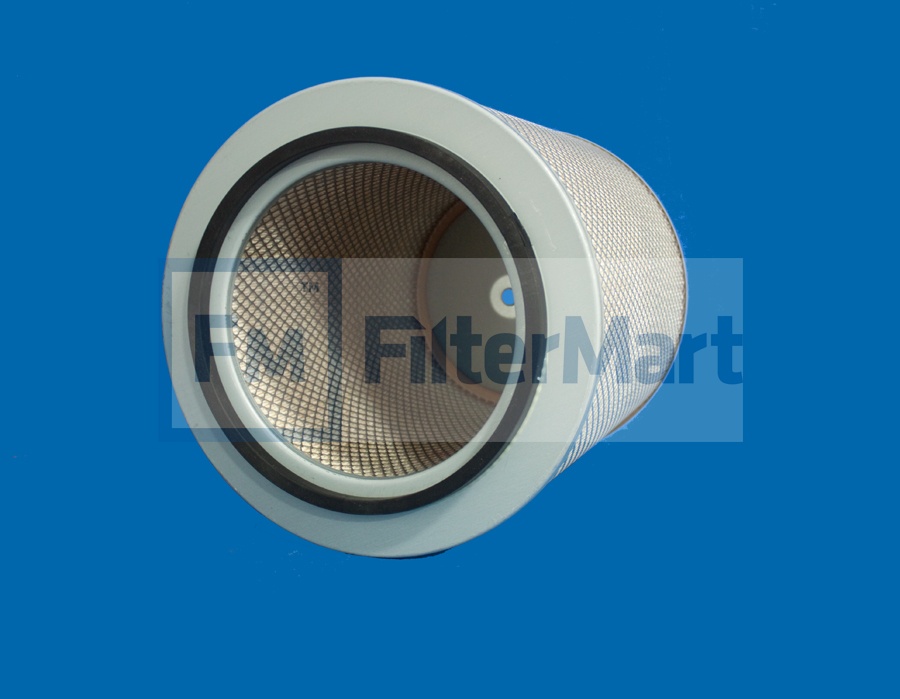

Filtermart™ INTAKE AIR FILTER ELEMENT

Add To Cart

FMC #22-1013

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Air Filters/Intake Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 NOMINAL
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	12.22 IN (310.39 MM)
  (B) Outer Diameter, Bottom:	12.19 IN (309.63 MM)
  (C) Inner Diameter, Top:	0.41 IN (10.41 MM)
  (D) Inner Diameter, Bottom:	7.89 IN (200.41 MM)
  (E) Length:	14.50 IN (200.41 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	NONE
  Configuration:	SINGLE / BOLT HOLE

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	9.00 LB (4.08 KG)
