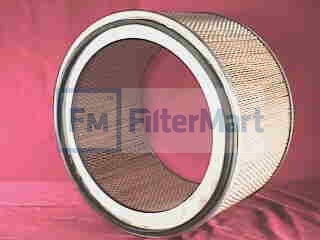

Filtermart™ INTAKE AIR FILTER ELEMENT

Add To Cart

FMC #22-1275

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Air Filters/Intake Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 NOMINAL
  Beta Rating:	N.A.
  Collapse Pressure Rating:	NOT RATED
  Maximum Temperature:	300 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	17.00 IN (431.80 MM)
  (B) Outer Diameter, Bottom:	17.00 IN (431.80 MM)
  (C) Inner Diameter, Top:	13.00 IN (330.20 MM)
  (D) Inner Diameter, Bottom:	13.00 IN (330.20 MM)
  (E) Length:	10.00 IN (330.20 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NEOPRENE
  Type of Adhesive:	POLYVINYLCHLORIDE
  Type of Endcap:	PLATED STEEL
  Center Tube:	EXPANDED METAL
  Type of Media:	PAPER
  Filter Area:	92 SQ FT
  Plating:	TIN
  Outer Jacket:	NONE - NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	10.00 LB (4.54 KG)
