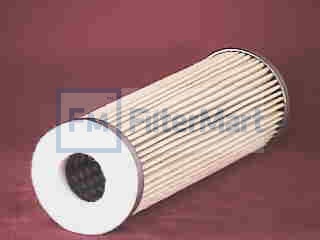

Filtermart™ INTAKE AIR FILTER ELEMENT

Add To Cart

FMC #22-1276

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*10 per carton

Industrial Filters/Air Filters/Intake Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	1.75 IN (44.45 MM)
  (B) Outer Diameter, Bottom:	1.75 IN (44.45 MM)
  (C) Inner Diameter, Top:	0.88 IN (22.35 MM)
  (D) Inner Diameter, Bottom:	0.25 IN (6.35 MM)
  (E) Length:	5.00 IN (6.35 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	FELT
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	NONE - NONE
  Configuration:	SINGLE OPEN END W/BH

• Packaging Specifications

  Number per Carton:

  10
