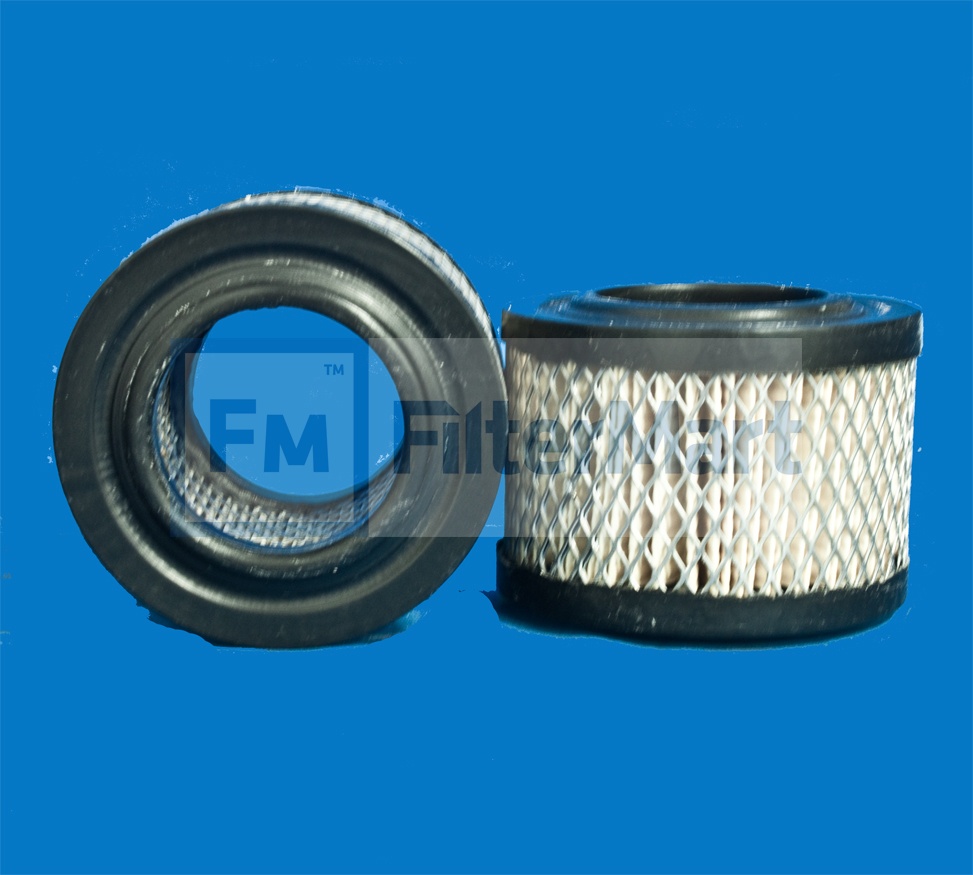

Filtermart™ INTAKE AIR ELEMENT

Add To Cart

FMC #22-4232

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Air Filters/Intake Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	N/A
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.50 IN (114.30 MM)
  (B) Outer Diameter, Bottom:	4.50 IN (114.30 MM)
  (C) Inner Diameter, Top:	2.38 IN (60.45 MM)
  (D) Inner Diameter, Bottom:	2.38 IN (60.45 MM)
  (E) Length:	3.12 IN (60.45 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	MOLDED
  Type of Adhesive:	N/A
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	YES - EXPANDED
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  12
