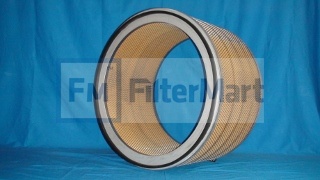

Filtermart™ INTAKE AIR FILTER ELEMENT

Add To Cart

FMC #22-4323

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Air Filters/Intake Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	2.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	12 PSID
  Maximum Temperature:	240 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	23.00 IN (584.20 MM)
  (B) Outer Diameter, Bottom:	23.00 IN (584.20 MM)
  (C) Inner Diameter, Top:	19.00 IN (482.60 MM)
  (D) Inner Diameter, Bottom:	19.00 IN (482.60 MM)
  (E) Length:	14.00 IN (482.60 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NEOPRENE
  Type of Adhesive:	THERMOSETTING PVC
  Type of Endcap:	STEEL
  Center Tube:	EXPANDED METAL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:	ELECTROGALVANIZED
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	17.00 LB (7.71 KG)
