All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

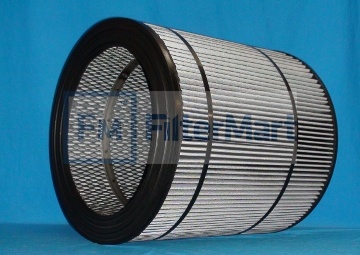

Industrial Filters/Radial Fin Filters/Liquid or Air
| Micron Rating: | 10.00 |
| Beta Rating: | |
| Collapse Pressure Rating: | |
| Maximum Temperature: | 200 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 19.50 IN (495.30 MM) |
| (B) Outer Diameter, Bottom: | 19.50 IN (495.30 MM) |
| (C) Inner Diameter, Top: | 14.50 IN (368.30 MM) |
| (D) Inner Diameter, Bottom: | 14.50 IN (368.30 MM) |
| (E) Length: | 20.00 IN (368.30 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | |
| Type of Adhesive: | |
| Type of Endcap: | PLASTISOL |
| Center Tube: | CARBON STEEL |
| Type of Media: | POLYESTER |
| Filter Area: | 73.1 SQ.FT. |
| Plating: | |
| Outer Jacket: | NONE |
| Configuration: |
| Number per Carton: | 1 |
| Carton Weight: | 39.00 LB (17.69 KG) |
