All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

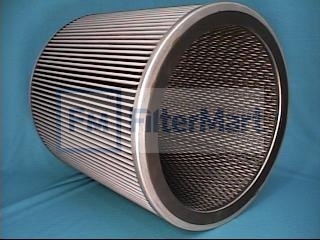

Industrial Filters/Radial Fin Filters/Liquid or Air
| Micron Rating: | 10.00 98% AT 1 |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | 100 PSID |
| Maximum Temperature: | 275 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 18.13 IN (460.50 MM) |
| (B) Outer Diameter, Bottom: | 18.13 IN (460.50 MM) |
| (C) Inner Diameter, Top: | 14.63 IN (371.60 MM) |
| (D) Inner Diameter, Bottom: | 0.81 IN (20.57 MM) |
| (E) Length: | 18.25 IN (20.57 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | NEOPREN |
| Type of Adhesive: | VINYL |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | 16 GAUGE PLATED |
| Type of Media: | POLYESTER |
| Filter Area: | 56.7 SQ.FT. |
| Plating: | ELECTROTIN PLATED |
| Outer Jacket: | NONE |
| Configuration: | SINGLE OPEN END W/BH |
| Number per Carton: | 1 |
| Carton Weight: | 24.00 LB (10.89 KG) |
