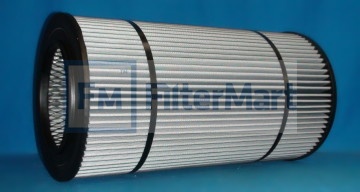

Filtermart™ RADIAL FIN ELEMENT

Add To Cart

FMC #23-3336

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Radial Fin Filters/Liquid or Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	4.00
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	200 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	13.00 IN (330.20 MM)
  (B) Outer Diameter, Bottom:	13.00 IN (330.20 MM)
  (C) Inner Diameter, Top:	8.00 IN (203.20 MM)
  (D) Inner Diameter, Bottom:	8.00 IN (203.20 MM)
  (E) Length:	24.00 IN (203.20 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	N/A
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	MOLDED
  Center Tube:	EXPANDED METAL
  Type of Media:	POLYESTER FELT
  Filter Area:	54.8 SQFT
  Plating:	N/A
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
