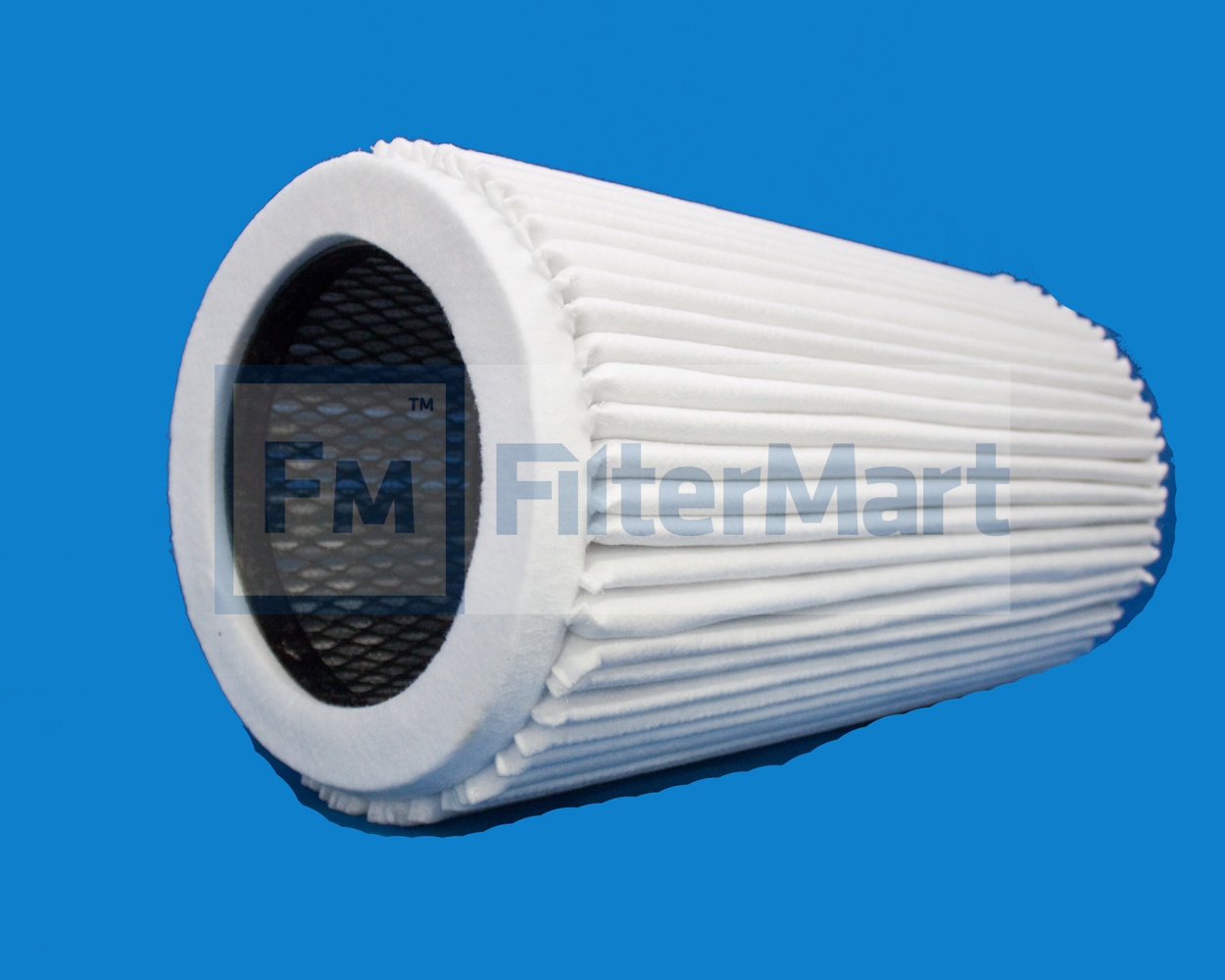

Filtermart™ RADIAL FIN ELEMENT

Add To Cart

FMC #23-3355

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Radial Fin Filters/Liquid or Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	4.00
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:	300 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	9.00 IN (228.60 MM)
  (B) Outer Diameter, Bottom:	9.00 IN (228.60 MM)
  (C) Inner Diameter, Top:	4.50 IN (114.30 MM)
  (D) Inner Diameter, Bottom:	4.50 IN (114.30 MM)
  (E) Length:	20.25 IN (114.30 MM)
  (F) Thread:

• Physical Specifications

  Handle:	NONE
  Seal Material:	1/2"FELT
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	POLYESTER FELT
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	NONE
  Configuration:

• Packaging Specifications

  Number per Carton:

  1
