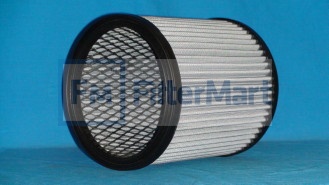

Filtermart™ RADIAL FIN ELEMENT

Add To Cart

FMC #23-3480

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Radial Fin Filters/Liquid or Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00
  Beta Rating:	N/A
  Collapse Pressure Rating:	25 PSI
  Maximum Temperature:	N/A
  Direction of Flow:	OUTSIDE-> IN
  Recommended Changeout Differential Pressure:	15 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	9.25 IN (234.95 MM)
  (B) Outer Diameter, Bottom:	9.25 IN (234.95 MM)
  (C) Inner Diameter, Top:	7.62 IN (193.55 MM)
  (D) Inner Diameter, Bottom:	7.62 IN (193.55 MM)
  (E) Length:	10.00 IN (193.55 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:	EPOXY
  Type of Endcap:	MOLDED
  Center Tube:	GALVANIZED METAL
  Type of Media:	POLYESTER
  Filter Area:	SQ. IN"
  Plating:
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
