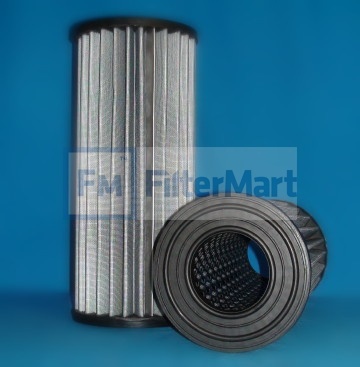

Filtermart™ RADIAL FIN ELEMENT

Add To Cart

FMC #23-3864

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*2 per carton

Industrial Filters/Radial Fin Filters/Liquid or Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	5.00
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	N/A
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	6.75 IN (171.45 MM)
  (B) Outer Diameter, Bottom:	6.75 IN (171.45 MM)
  (C) Inner Diameter, Top:	3.25 IN (82.55 MM)
  (D) Inner Diameter, Bottom:	3.25 IN (82.55 MM)
  (E) Length:	15.00 IN (82.55 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	MOLDED
  Type of Adhesive:	N/A
  Type of Endcap:	PLASTISOL
  Center Tube:	PLATED STEEL
  Type of Media:	POLYESTER
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  2
