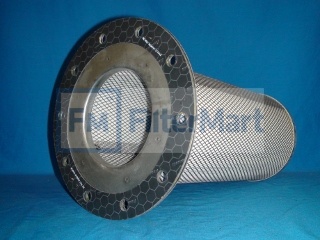

Filtermart™ AIR/OIL SEPARATOR ELEMENT

Add To Cart

FMC #24-0058

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Separator Filters/Air/Oil

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.30 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	12.00 IN (304.80 MM)
  (B) Outer Diameter, Bottom:	8.38 IN (212.85 MM)
  (C) Inner Diameter, Top:	5.88 IN (149.35 MM)
  (E) Length:	18.25 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	YES - EXPANDED
  Configuration:	SINGLE OPEN W/FLANGE

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	15.00 LB (6.80 KG)
