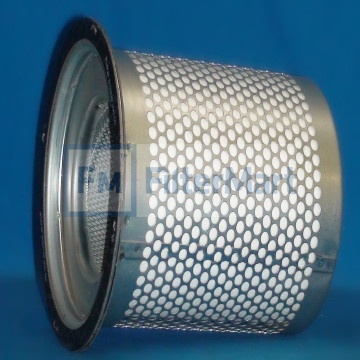

Filtermart™ AIR/OIL SEPARATOR ELEMENT

Add To Cart

FMC #24-1350

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Separator Filters/Air/Oil

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.30
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	N/A
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	7.88 IN (200.15 MM)
  (B) Outer Diameter, Bottom:	6.62 IN (168.15 MM)
  (C) Inner Diameter, Top:	4.31 IN (109.47 MM)
  (E) Length:	9.06 IN (0.00 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	FIBERGLASS
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	5.00 LB (2.27 KG)
