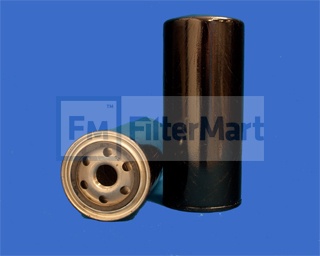

Filtermart™ SPIN-ON DUAL MEDIA ELEMENT

Add To Cart

FMC #25-0017

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Spin-On Filters/Paper. Microglass, Wire, Water Removal

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	5.00 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	100 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.75 IN (95.25 MM)
  (B) Outer Diameter, Bottom:	3.75 IN (95.25 MM)
  (C) Inner Diameter, Top:	1.13 IN (28.70 MM)
  (E) Length:	8.38 IN (0.00 MM)
  (F) Thread:

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER + AA
  Filter Area:	SQ.IN.
  Plating:	ELECTR0TIN PLATED
  Outer Jacket:	YES - METAL
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	5.00 LB (2.27 KG)
