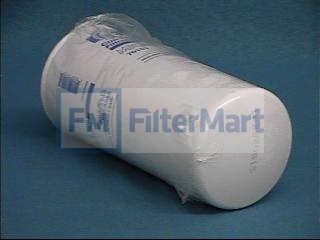

Filtermart™ SPIN-ON ELEMENT

Add To Cart

FMC #25-0645

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Spin-On Filters/Paper. Microglass, Wire, Water Removal

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	6.00 ABSOLUTE
  Beta Rating:	1000
  Collapse Pressure Rating:	100 PSID
  Maximum Temperature:	275 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.60 IN (91.44 MM)
  (B) Outer Diameter, Bottom:	3.60 IN (91.44 MM)
  (E) Length:	7.87 IN (0.00 MM)
  (F) Thread:	1"-12 UNF

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	NONE
  Configuration:

• Packaging Specifications

  Number per Carton:

  1
