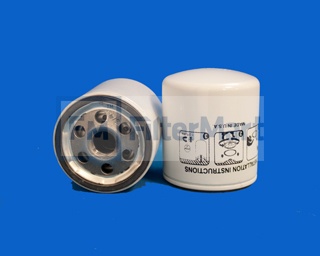

Filtermart™ SPIN-ON ELEMENT

Add To Cart

FMC #25-0948

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Spin-On Filters/Paper. Microglass, Wire, Water Removal

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	144.00
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.75 IN (95.25 MM)
  (B) Outer Diameter, Bottom:	3.75 IN (95.25 MM)
  (C) Inner Diameter, Top:	1.00 IN (25.40 MM)
  (E) Length:	5.00 IN (0.00 MM)
  (F) Thread:	1"-12

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	STEEL
  Type of Media:	304 SS WIRE
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	12
  Carton Weight:	21.00 LB (9.53 KG)
