All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

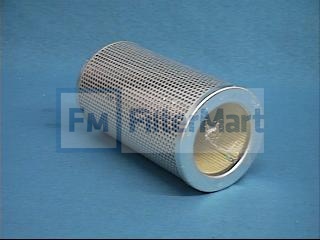

Industrial Filters/General Purpose Filters/Miscellaneous
| Micron Rating: | 10.00 NOMINAL |
| Beta Rating: | |
| Collapse Pressure Rating: | 145 PSID |
| Maximum Temperature: | 248 F |
| Direction of Flow: | INSIDE->OUT |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 4.17 IN (105.92 MM) |
| (B) Outer Diameter, Bottom: | 4.17 IN (105.92 MM) |
| (C) Inner Diameter, Top: | 2.83 IN (71.88 MM) |
| (D) Inner Diameter, Bottom: | 0.41 IN (10.41 MM) |
| (E) Length: | 7.48 IN (10.41 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | BUNA-N |
| Type of Adhesive: | |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | NONE |
| Type of Media: | PAPER |
| Filter Area: | SQ.IN. |
| Plating: | |
| Outer Jacket: | YES |
| Configuration: | DOUBLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 1.40 LB (0.64 KG) |
