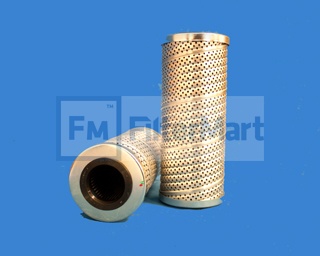

Filtermart™ PLEATED WIRE ELEMENT

Add To Cart

FMC #28-0096

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/General Purpose Filters/Miscellaneous

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	74.00 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:	50 PSI
  Maximum Temperature:	275 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.68 IN (93.47 MM)
  (B) Outer Diameter, Bottom:	3.68 IN (93.47 MM)
  (C) Inner Diameter, Top:	1.78 IN (45.21 MM)
  (D) Inner Diameter, Bottom:	1.78 IN (45.21 MM)
  (E) Length:	9.31 IN (45.21 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	NONE
  Type of Media:	304 SS WIRE
  Filter Area:	SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	6.00 LB (2.72 KG)
