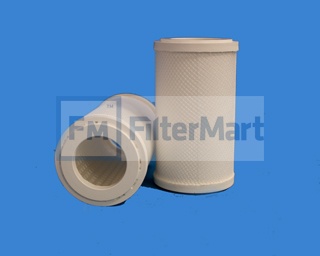

Filtermart™ AIR COALESCER ELEMENT

Add To Cart

FMC #28-0154

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/General Purpose Filters/Miscellaneous

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.30 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:	175 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.70 IN (68.58 MM)
  (B) Outer Diameter, Bottom:	2.70 IN (68.58 MM)
  (C) Inner Diameter, Top:	2.16 IN (54.86 MM)
  (D) Inner Diameter, Bottom:	2.16 IN (54.86 MM)
  (E) Length:	5.00 IN (54.86 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	URETHAN
  Type of Adhesive:	EPOXY
  Type of Endcap:	POLYURETHANE
  Center Tube:	POLYPROPYLENE
  Type of Media:	BOROSILICATE
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	YES
  Configuration:

• Packaging Specifications

  Number per Carton:	6
  Carton Weight:	6.00 LB (2.72 KG)
