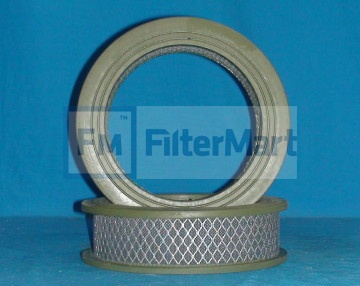

Filtermart™ RADIAL FIN ELEMENT

Add To Cart

FMC #41-4528

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/General Purpose Filters/Miscellaneous

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	750.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:	200 F
  Direction of Flow:
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	9.25 IN (234.95 MM)
  (B) Outer Diameter, Bottom:	9.25 IN (234.95 MM)
  (C) Inner Diameter, Top:	6.69 IN (169.93 MM)
  (D) Inner Diameter, Bottom:	6.69 IN (169.93 MM)
  (E) Length:	2.56 IN (169.93 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:
  Type of Endcap:	MOLDED
  Center Tube:
  Type of Media:	WIRE MESH
  Filter Area:	N/A
  Plating:
  Outer Jacket:	YES - STEEL
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
