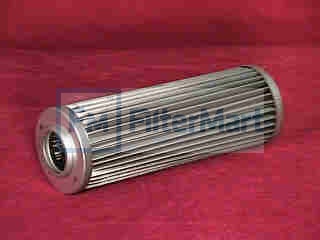

Filtermart™ PLEATED WIRE ELEMENT

Add To Cart

FMC #06-0011

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Wire Filters/Pleated

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	74.00 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.63 IN (66.80 MM)
  (B) Outer Diameter, Bottom:	2.63 IN (66.80 MM)
  (C) Inner Diameter, Top:	1.25 IN (31.75 MM)
  (E) Length:	7.25 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	304 SS WIRE
  Filter Area:	SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	NONE
  Configuration:

• Packaging Specifications

  Number per Carton:

  1
