All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

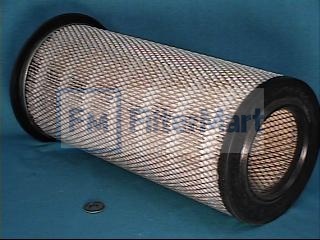

Industrial Filters/Air Filters/Intake Air
Micron Rating: | 15.00 NOMINAL |
Beta Rating: | N/A |
Collapse Pressure Rating: | NOT RATED |
Maximum Temperature: | 300 F |
Direction of Flow: | OUTSIDE->IN |
Recommended Changeout Differential Pressure: | 20 PSID |
(A) Outer Diameter, Top: | 6.62 IN (168.15 MM) |
(B) Outer Diameter, Bottom: | 6.62 IN (168.15 MM) |
(C) Inner Diameter, Top: | 0.50 IN (12.70 MM) |
(D) Inner Diameter, Bottom: | 3.88 IN (98.55 MM) |
(E) Length: | 15.18 IN (98.55 MM) |
(F) Thread: | NONE |
Handle: | NONE |
Seal Material: | |
Type of Adhesive: | URETHANE |
Type of Endcap: | URETHANE/METAL |
Center Tube: | EXPANDED METAL |
Type of Media: | PAPER |
Filter Area: | SQ.IN. |
Plating: | ELECTROTIN PLATED |
Outer Jacket: | YES - METAL |
Configuration: | SINGLE OPEN END B/H |
Number per Carton: | 1 |
