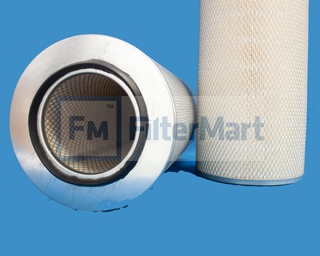

Filtermart™ INTAKE AIR FILTER ELEMENT

Add To Cart

FMC #22-0089

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Air Filters/Intake Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	NOT RATED
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	9.53 IN (242.06 MM)
  (B) Outer Diameter, Bottom:	9.53 IN (242.06 MM)
  (C) Inner Diameter, Top:	5.18 IN (131.57 MM)
  (D) Inner Diameter, Bottom:	0.44 IN (11.18 MM)
  (E) Length:	19.50 IN (11.18 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	YES - METAL
  Configuration:	SINGLE OPEN END/BH

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	8.00 LB (3.63 KG)
