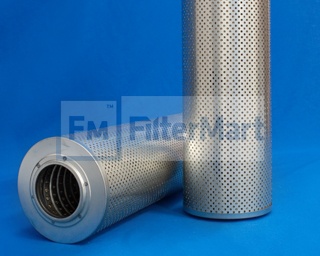

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #01-0507

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 NOMINAL
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.50 IN (114.30 MM)
  (C) Inner Diameter, Top:	2.22 IN (56.39 MM)
  (E) Length:	15.00 IN (0.00 MM)
  (F) Thread:

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES
  Configuration:

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	12.80 LB (5.81 KG)
