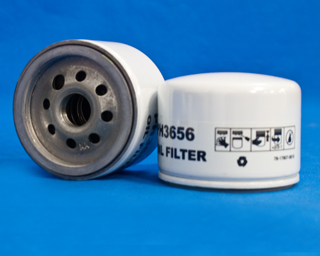

Filtermart™ SPIN-ON ELEMENT

Add To Cart

FMC #01-3446

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	20.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.15 IN (80.01 MM)
  (E) Length:	2.40 IN (0.00 MM)
  (F) Thread:	3/4-16 UNF2B

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES - METAL
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	12
  Carton Weight:	8.00 LB (3.63 KG)
