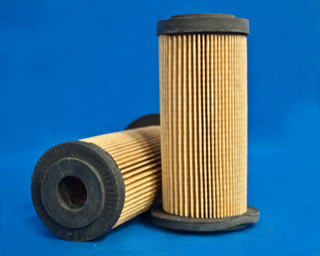

Filtermart™ PLEATED PAPER ELEMENT

Add To Cart

FMC #01-3652

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Liquid Filters/Pleated Paper/General Purpose

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	30.00 NOMINAL
  Beta Rating:
  Collapse Pressure Rating:	70 PSID
  Maximum Temperature:	250 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.06 IN (77.72 MM)
  (B) Outer Diameter, Bottom:	3.06 IN (77.72 MM)
  (C) Inner Diameter, Top:	0.84 IN (21.34 MM)
  (E) Length:	5.94 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	MOLDED
  Type of Adhesive:	PVC
  Type of Endcap:	MOLDED
  Center Tube:	POLYPROPYLENE
  Type of Media:	PAPER
  Filter Area:	380 SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	12
  Carton Weight:	8.00 LB (3.63 KG)
