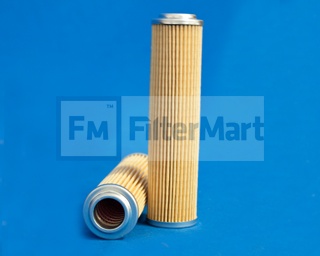

Filtermart™ ARMY-NAVY ELEMENT

Add To Cart

FMC #02-0002

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Liquid Filters/Pleated Paper/Army/Navy

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 NOMINAL
  Beta Rating:	N.A.
  Collapse Pressure Rating:	150 PSID
  Maximum Temperature:	275 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	1.13 IN (28.70 MM)
  (B) Outer Diameter, Bottom:	1.13 IN (28.70 MM)
  (C) Inner Diameter, Top:	0.63 IN (16.00 MM)
  (E) Length:	4.63 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	ALUMINUM
  Center Tube:	SS SPRING
  Type of Media:	PAPER
  Filter Area:	56 SQ.IN.
  Plating:	NONE
  Outer Jacket:	NONE - NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	12
  Carton Weight:	3.00 LB (1.36 KG)
