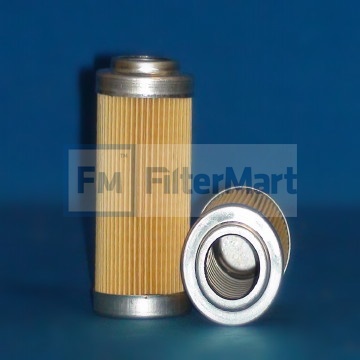

Filtermart™ ARMY-NAVY ELEMENT

Add To Cart

FMC #02-0049

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Liquid Filters/Pleated Paper/Army/Navy

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	3.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:	250 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	1.63 IN (41.40 MM)
  (B) Outer Diameter, Bottom:	1.63 IN (41.40 MM)
  (C) Inner Diameter, Top:	0.89 IN (22.61 MM)
  (E) Length:	3.43 IN (0.00 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	EPR
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	S STEEL
  Type of Media:	PAPER
  Filter Area:	N/A
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	NONE - NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  12
