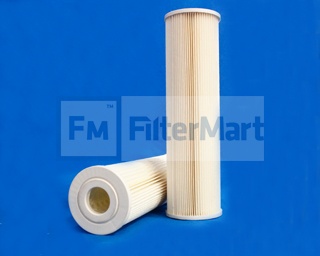

Filtermart™ PLEATED SYNTHETIC ELEMENT

Add To Cart

FMC #04-0242

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Liquid Filters/Pleated Synthetic/Polyester/Polypropylene Water Filtration

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	5.00
  Beta Rating:	N/A
  Collapse Pressure Rating:
  Maximum Temperature:	200 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	15 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.75 IN (69.85 MM)
  (B) Outer Diameter, Bottom:	2.75 IN (69.85 MM)
  (C) Inner Diameter, Top:	1.10 IN (27.94 MM)
  (D) Inner Diameter, Bottom:	1.10 IN (27.94 MM)
  (E) Length:	9.75 IN (27.94 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	N/A
  Type of Adhesive:	N/A
  Type of Endcap:	PLASTISOL
  Center Tube:	GLASS FILLED POLY
  Type of Media:	SYNTHETIC
  Filter Area:	SQ.IN.
  Plating:	N/A
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  6
