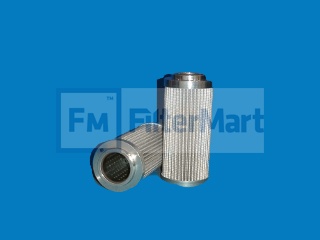

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-0029

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	3.00 ABSOLUTE
  Beta Rating:	B3 = 200
  Collapse Pressure Rating:	100 PSID
  Maximum Temperature:	300 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.36 IN (59.94 MM)
  (B) Outer Diameter, Bottom:	2.36 IN (59.94 MM)
  (C) Inner Diameter, Top:	1.30 IN (33.02 MM)
  (E) Length:	5.12 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	NONE - NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	2.00 LB (0.91 KG)
