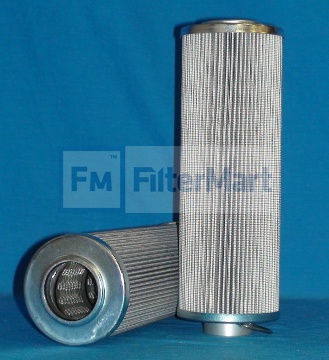

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-0484

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 ABSOLUTE
  Beta Rating:	B15=200
  Collapse Pressure Rating:	250 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.64 IN (92.46 MM)
  (B) Outer Diameter, Bottom:	3.64 IN (92.46 MM)
  (C) Inner Diameter, Top:	1.84 IN (46.74 MM)
  (E) Length:	10.80 IN (0.00 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	NONE - NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
