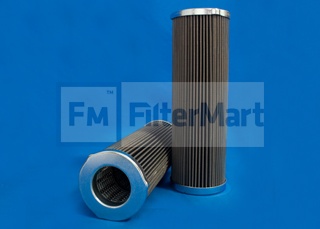

Filtermart™ PLEATED WIRE ELEMENT

Add To Cart

FMC #05-0996

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	100.00 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.25 IN (82.55 MM)
  (B) Outer Diameter, Bottom:	3.25 IN (82.55 MM)
  (C) Inner Diameter, Top:	1.88 IN (47.75 MM)
  (E) Length:	10.13 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	STEEL
  Type of Media:	304 SS WIRE
  Filter Area:	SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
