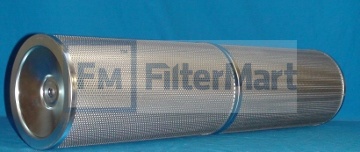

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-1118

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	212 F
  Direction of Flow:	INSIDE--OUT
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	7.95 IN (201.93 MM)
  (B) Outer Diameter, Bottom:	7.95 IN (201.93 MM)
  (C) Inner Diameter, Top:	6.18 IN (156.97 MM)
  (D) Inner Diameter, Bottom:	0.56 IN (14.22 MM)
  (E) Length:	32.48 IN (14.22 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	N/A
  Type of Endcap:	PLATED STEEL
  Center Tube:	STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	N/A
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	14.30 LB (6.49 KG)
