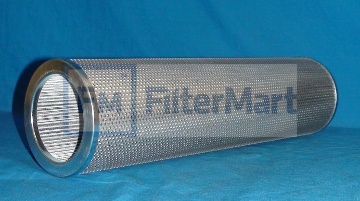

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-1483

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	3.00 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:	145 PSID
  Maximum Temperature:	248 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.96 IN (125.98 MM)
  (B) Outer Diameter, Bottom:	4.96 IN (125.98 MM)
  (C) Inner Diameter, Top:	3.62 IN (91.95 MM)
  (D) Inner Diameter, Bottom:	0.41 IN (10.41 MM)
  (E) Length:	18.89 IN (10.41 MM)
  (F) Thread:	0

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:
  Type of Media:	MICROGLASS
  Filter Area:	1380 SQ.IN.
  Plating:
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
